M8 Crankcase Breather Valve
$276.92

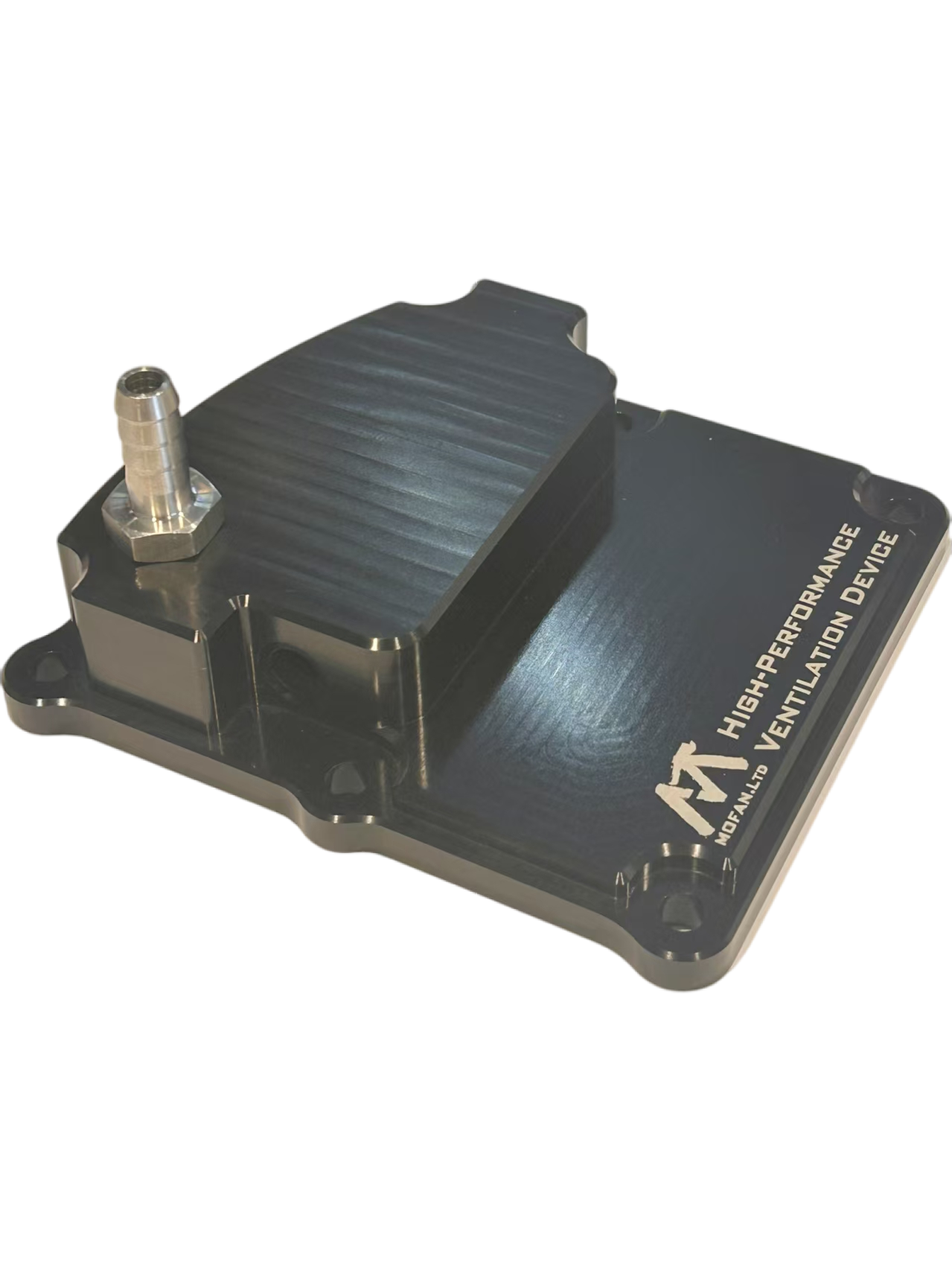

Protect Your Intake. Enhance Engine Longevity. The Pro-Series Billet External Breather System is a high-performance ventilation solution designed specifically for Harley-Davidson Milwaukee-Eight (M8) engines.
Zero Contamination: Redirects oily crankcase blow-by gases away from your intake and combustion chamber, preventing carbon buildup on pistons and valves.
Pressure Optimization: Relieves internal crankcase pressure through the oil passage, allowing the engine to rotate more freely and reducing oil leaks at the base gaskets.
Pure Air-Fuel Mixture: By ensuring only clean air enters the intake, this system maintains a consistent air-fuel ratio and prevents engine “stutter” caused by oil mist ingestion.
01. QUICK COMPATIBILITY (Fitment Data)
Confirm your air cleaner clearance before wholesale inquiry. This is a vital reliability upgrade.
Platform: Harley-Davidson Milwaukee-Eight (M8) Engines.
Models: All Touring (Road Glide, Street Glide, etc.) and Softail models.
Production Years: 2017 – Present.
Air Cleaner Fitment: Works with most aftermarket high-flow air cleaners.
Installation Type: External bypass (Vents to atmosphere via high-efficiency filter).
02. TECHNICAL SPECIFICATIONS (The Data Hub)
| Specification | Performance Value | The Wildhog Advantage |
| Housing Material | 6061-T6 Billet Aluminum | Precision-machined for a leak-proof seal and premium aesthetic. |
| Filtration | High-Flow Mini-Breather Filter | Traps oil mist while allowing rapid gas escape; washable/reusable. |
| Internal Design | Baffled Oil/Air Separator | Mechanical baffle forces oil to drop while allowing pressure to vent. |
| Hardware | High-Temp Chemical Resistant Hose | Resists oil degradation and vacuum collapse under extreme heat. |
| Finish | Hard-Anodized “Tactical” Black | Laser-etched “High-Performance Ventilation Device” branding. |
03. THE ENGINEERING JOURNEY (Why M8 Engines Need This)
“Don’t let your engine breathe its own waste.”
The Blow-By Problem: Factory M8 setups vent crankcase gases back into the intake. This results in “hot, oily air” coating your throttle body and intake valves with carbon.
Combustion Stability: Our system ensures that only oxygen and fuel enter the cylinder, leading to a cleaner burn and preventing the “pre-detonation” (pinging) caused by oil-contaminated air.
Seal Protection: By significantly reducing internal crankcase pressure, we prevent oil from being forced out through the breather bolts or rocker box gaskets.
Precision Fit: Every plate is CNC-milled to ensure the oil passage alignment is 100% accurate, preventing the pooling issues found in cheaper cast alternatives.
04. FLUID DYNAMICS (Environmental & Performance)
Tested for long-distance touring in high-humidity climates.
Vapor Separation: The internal chamber is designed to separate heavy oil droplets from air vapor. The air vents out, while the oil is managed efficiently within the bypass loop.
Enhanced Sealing: Includes high-quality Viton O-rings that remain pliable even when exposed to the high operating temperatures of the M8’s rear cylinder area.
Heat Dissipation: The billet aluminum housing acts as a small radiator for the venting gases, slightly lowering the temperature of the internal engine environment.
05. INSTALLATION & MAINTENANCE PROTOCOL
Professional installation recommended to ensure proper hose routing.
Routing: Route the vent hose downward, away from the rear tire and exhaust heat shields.
Filter Placement: Position the breather filter in a location with adequate airflow but shielded from direct water spray.
Maintenance: Every 5,000 miles (8,000 km), inspect the breather filter. If saturated with oil, clean with a mild degreaser and air dry.
Check-Valve: Ensure the factory umbrella valves are in good condition for optimal system performance.
06. WHOLESALE & B2B INQUIRY

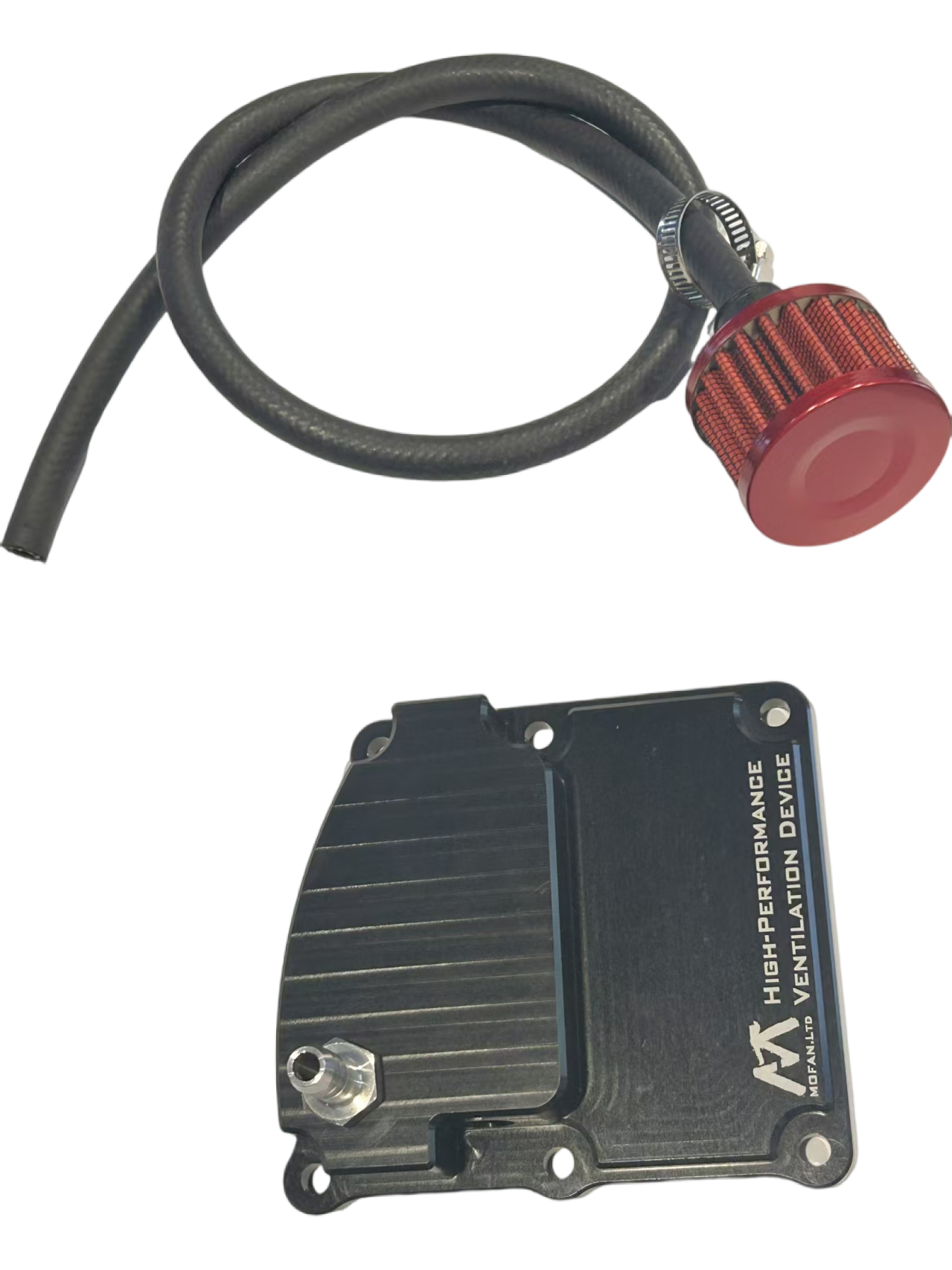

Standard MOQ: 5 Units (Complete kits with filter/hose).
Packaging: Vacuum-sealed Billet components with protective foam inserts.
Shipping: Express worldwide delivery via FedEx/DHL/UPS (48-hour dispatch).
